SUPPORT SCAFFOLDING FRAME TG60
SAFE, FAST AND VERSATILE SUPPORT
The Allround TG 60 scaffolding enables simple, quick and safe erection of scaffolding towers. The heart of the TG 60 is the TG60 scaffolding frame with integrated perforated discs.>/p>The Allround TG 60 scaffolding has an automatically integrated leading side protection in the structure. This enables safe, upright assembly without additional accessories.
The type statics correspond to DIN EN 12812.
WHAT YOU NEED TO KNOW ABOUT
LAYHER TG60
- Just three frame designs, each providing 60kN of loading capacity per leg or standard
- Integrates fully with existing Allround stocks
- Lightweight design facilitates ease of handling – no component weighs more than 18kg
- Rosette connection system minimises number of standard parts required
- A 30% time saving, compared with installations using individual standards and ledgers, has been shown
- Wedge head design and permanently integrated spigots contribute further to ease and speed of safe erection

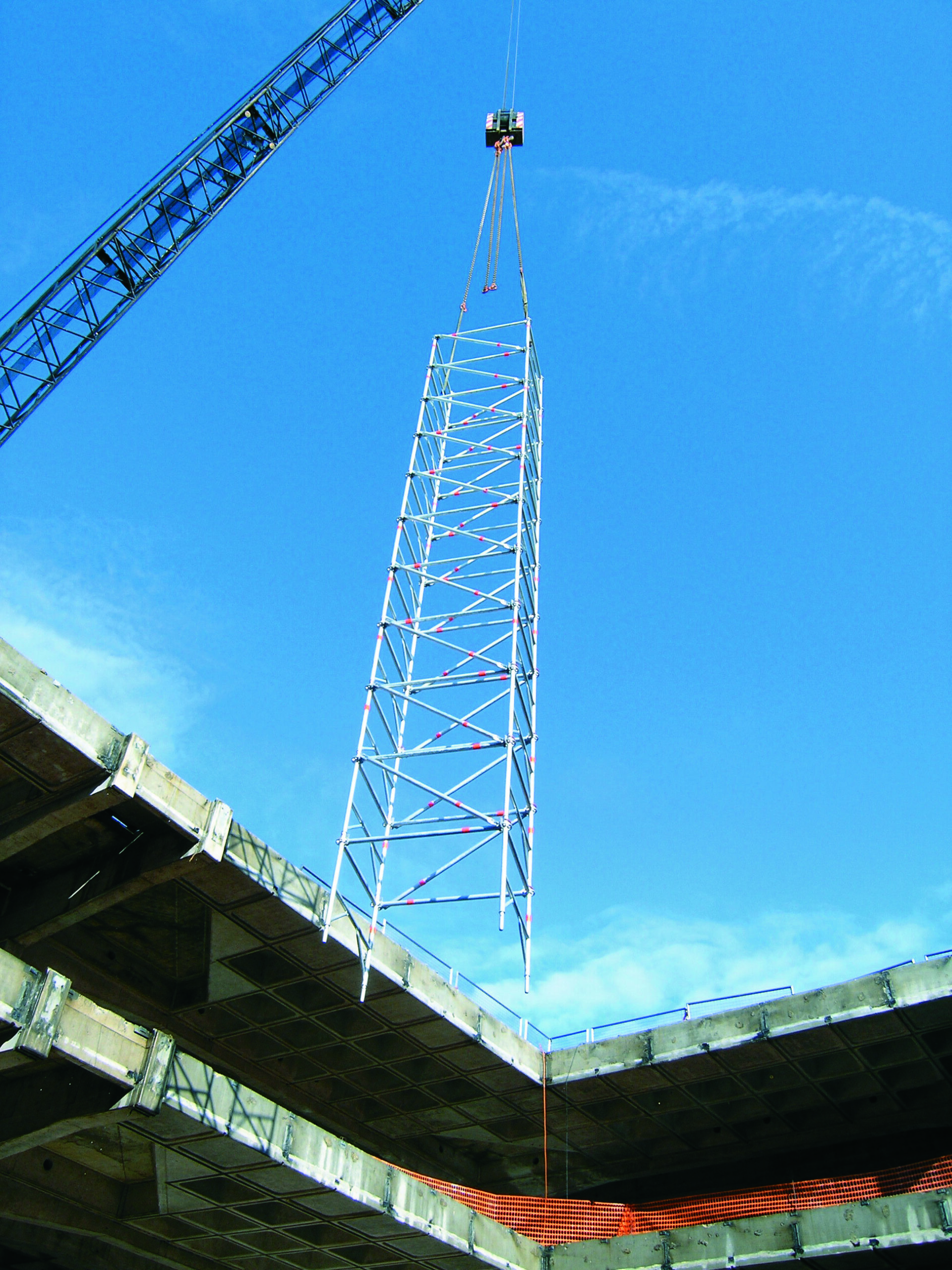

- Design allows build process to be undertaken from the ground upwards or, if required, pre-assembled for craning into position
- Bay configuration means rectangular scaffolding construction is achieved automatically
- Purpose-designed pallets optimise both transport and storage procedures
- The TG60 package includes detailed technical documentation

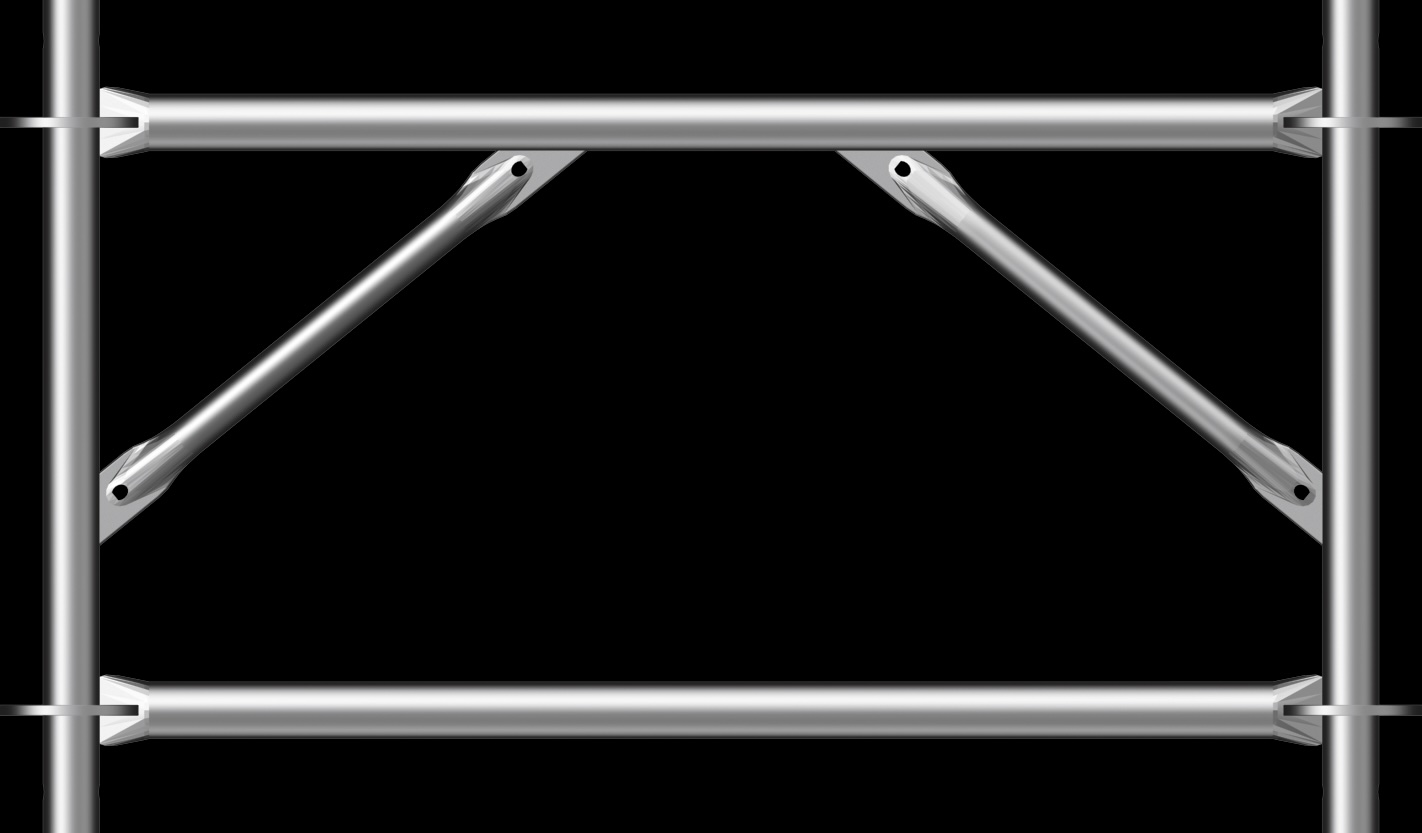

H = 0.71 m
as initial framework

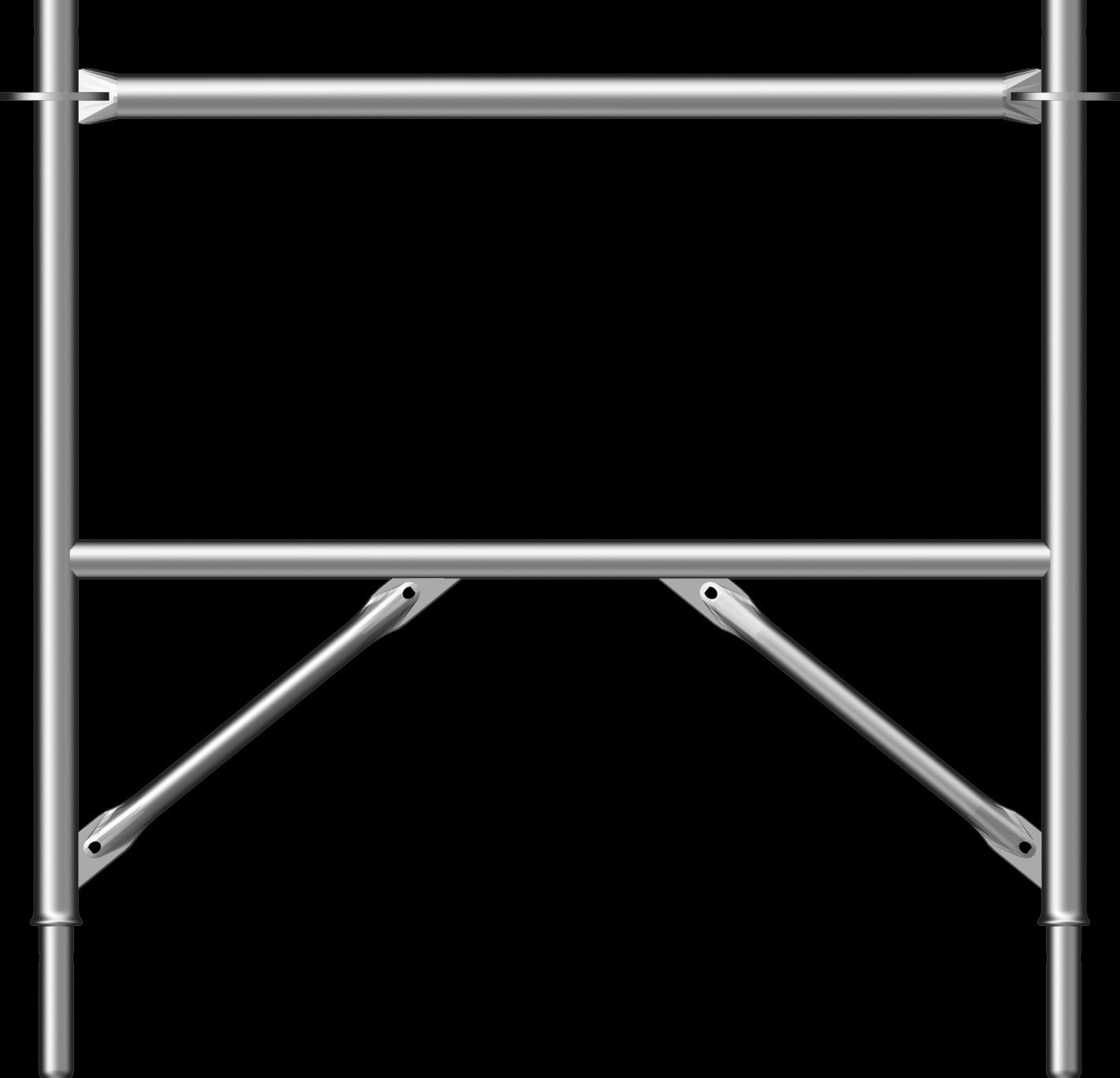

H = 1.00 m
as a frame in the middle tower area

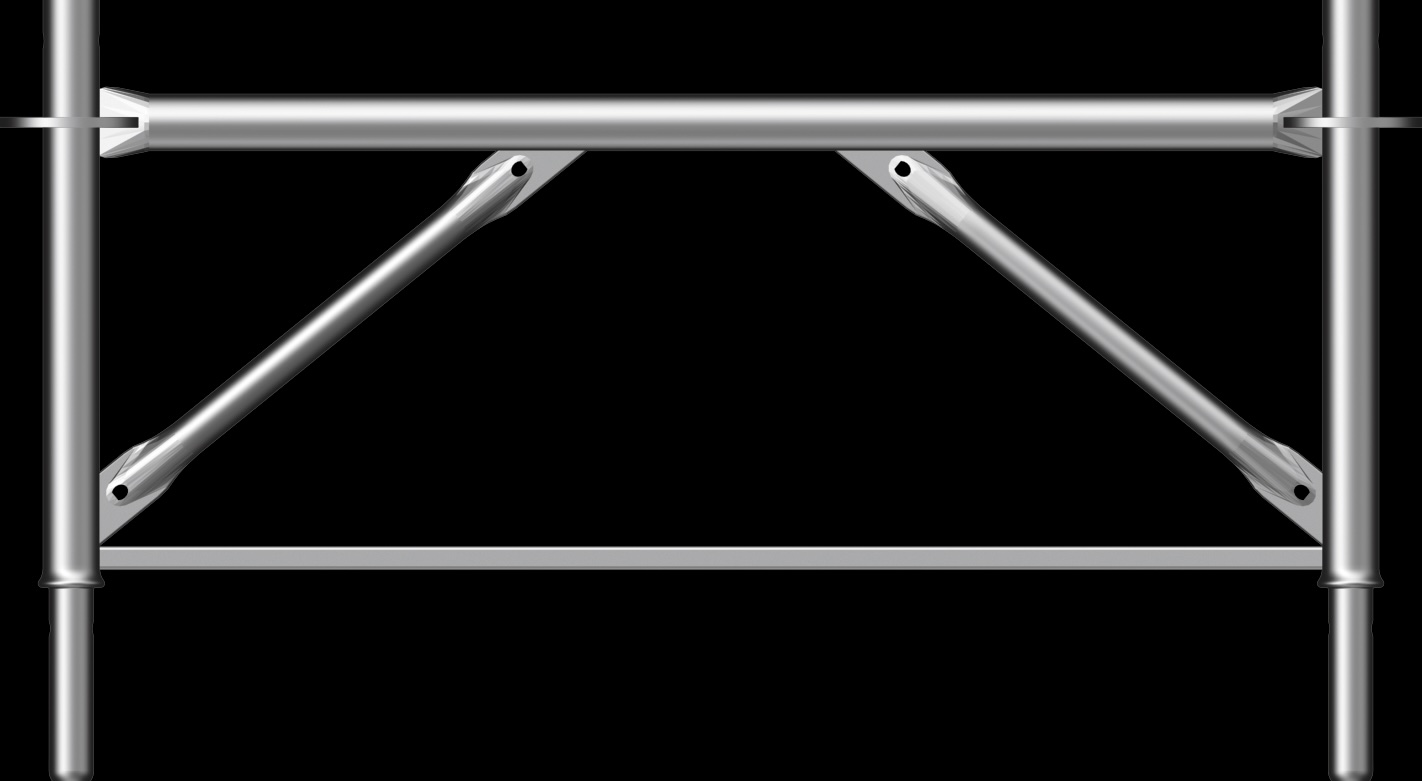

H = 0.50 m
as a closing or balancing frame
WATCH TG60 IN ACTION
AT LAYHER
TG60 IN ACTION
IN THE FIELD

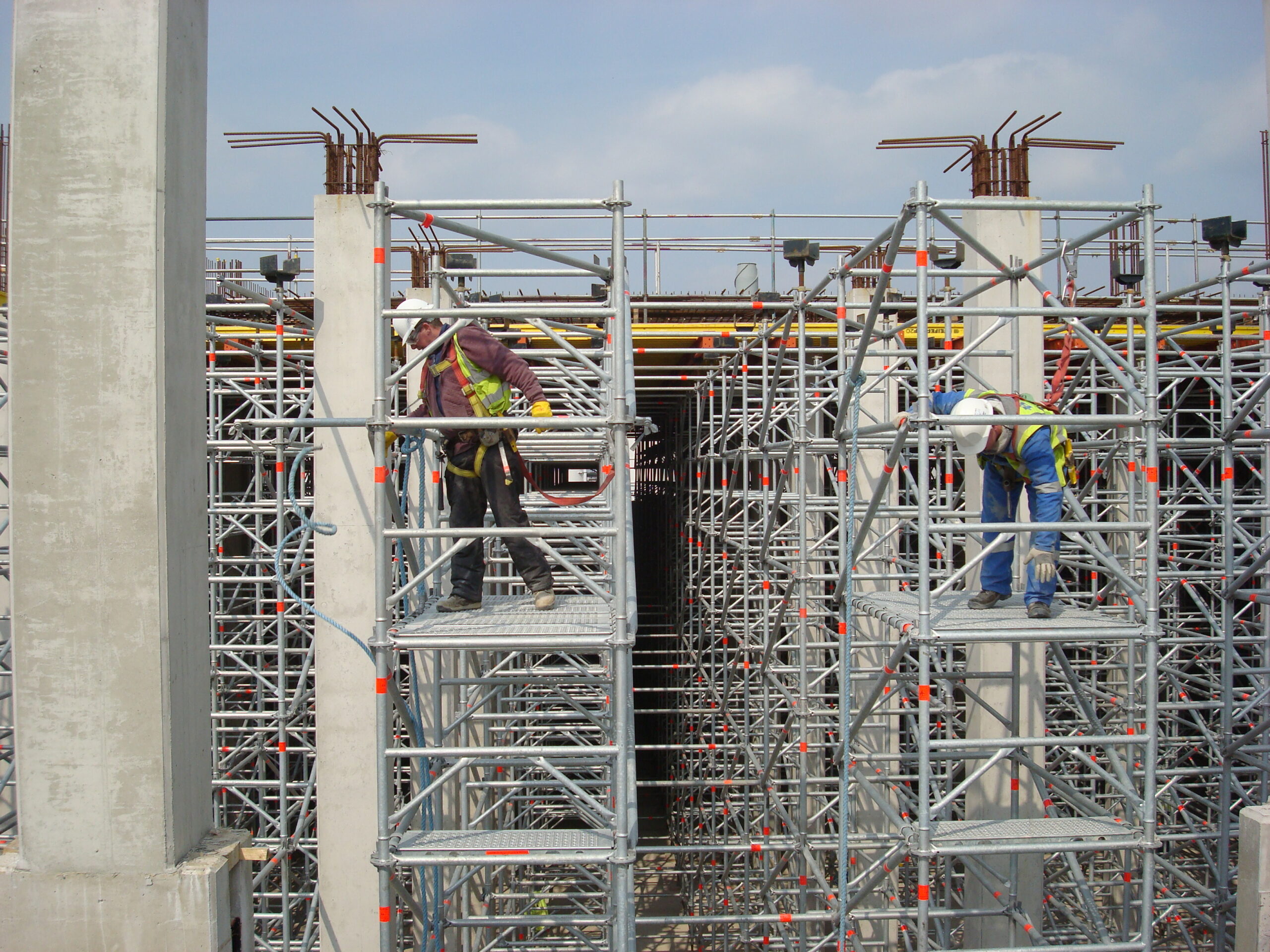

New TG60 Shoring System from Layher exceeds expectations on major project in Liverpool
