ALUMINIUM TWIXBEAM

Winner, NASC Product Innovation of the Year, 2022
More beam, more possibilities

TwixBeam’s high strength, ease of installation and dismantling, and full compatibility with Layher Allround bring significant advantages to scaffolding project efficiency.

Its low strength-to-weight ratio accounts for a high level of variability and design flexibility. As a multifunctional solution it is suitable for fixing, stabilising and bridging in all types of scaffold construction – features contributing in the field for the first time in the UK where bridging, gantries and hanging solutions need safe, efficient erection and dismantling.

TwixBeam extends still further the ability of Layher Allround to meet virtually any scaffolding and access requirement, and is the result of our own collaborative research and development programme in conjunction with invaluable customer feedback.

WHAT YOU NEED TO KNOW ABOUT

TWIXBEAM

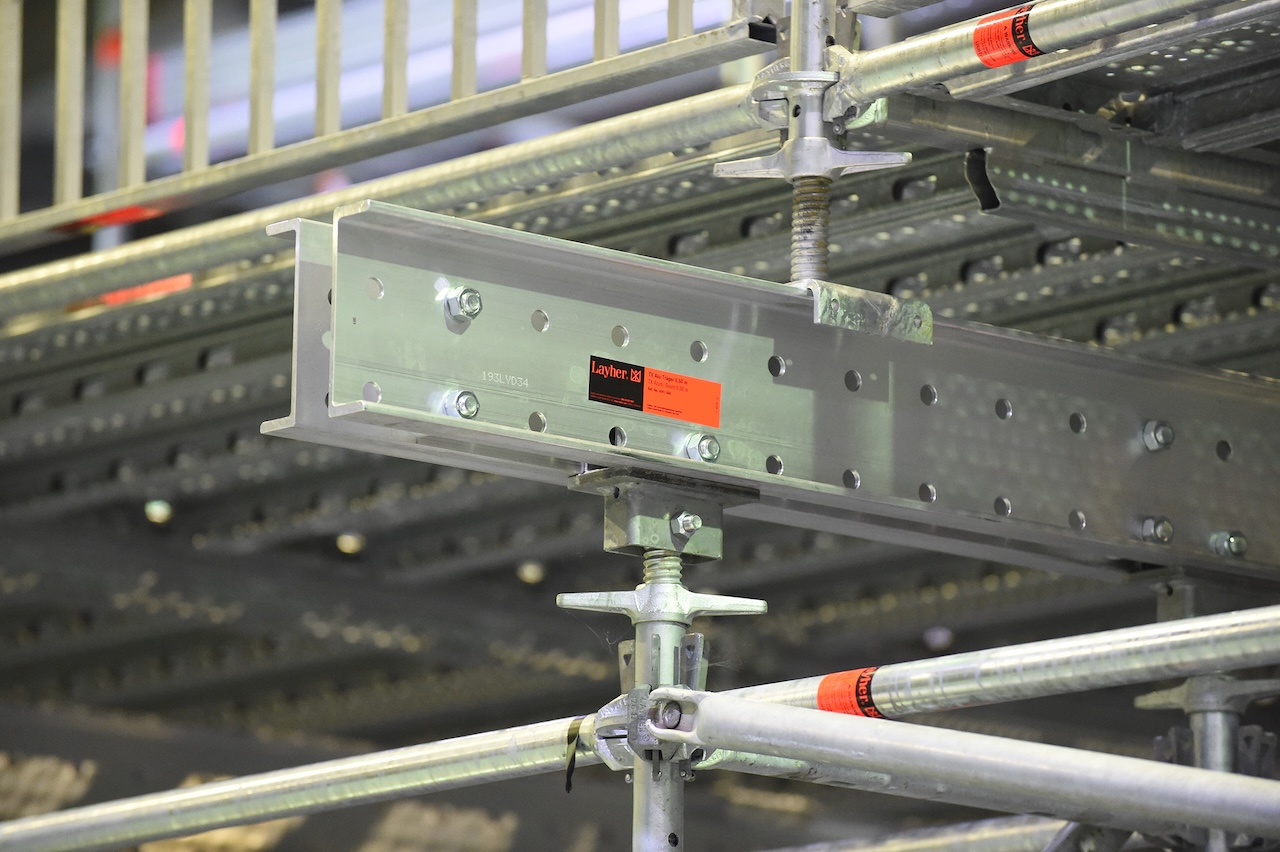

  • Detachable aluminium beam comprising wo extruded U-profiles and spacers mounted back-to-back
  • Available in range of 10 standard lengths – extendable with Beam Connectors or Insertion Beams
  • Light weight [approx. 7.2 kg/m] and high load bearing [Bending moment 57.1 kN (ultimate) / 38.1 kN (permissible)
  • Hybrid design integrates with FlexBeam and the full Layher modular system
  • Strut adjustment range from 0.90 m – 2.367 m
  • Enables tie-back anchoring, e.g. of scaffolds

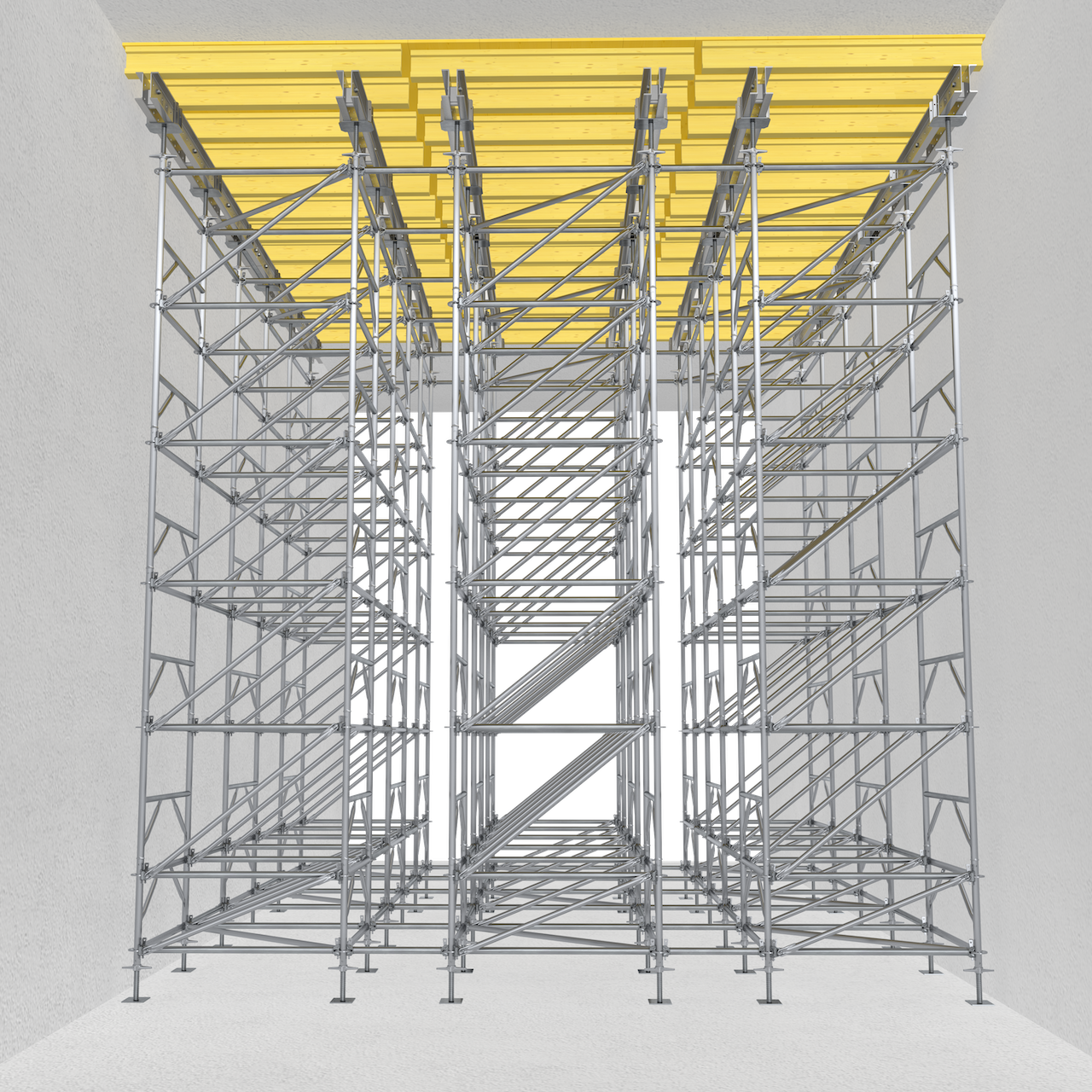

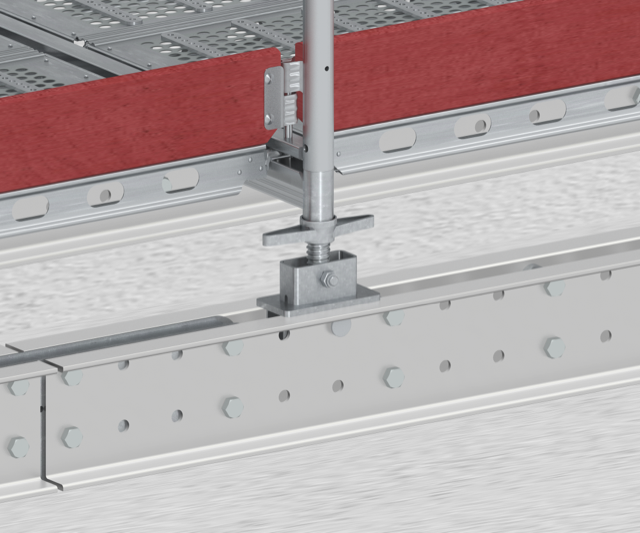

  • Use as support beam for stairtower suspension, hanging and cantilevered scaffolds. Can in addition be used to optimise TG60 in shoring operations

WATCH TWIXBEAM IN ACTION

AT LAYHER

TWIXBEAM IN ACTION

IN THE FIELD

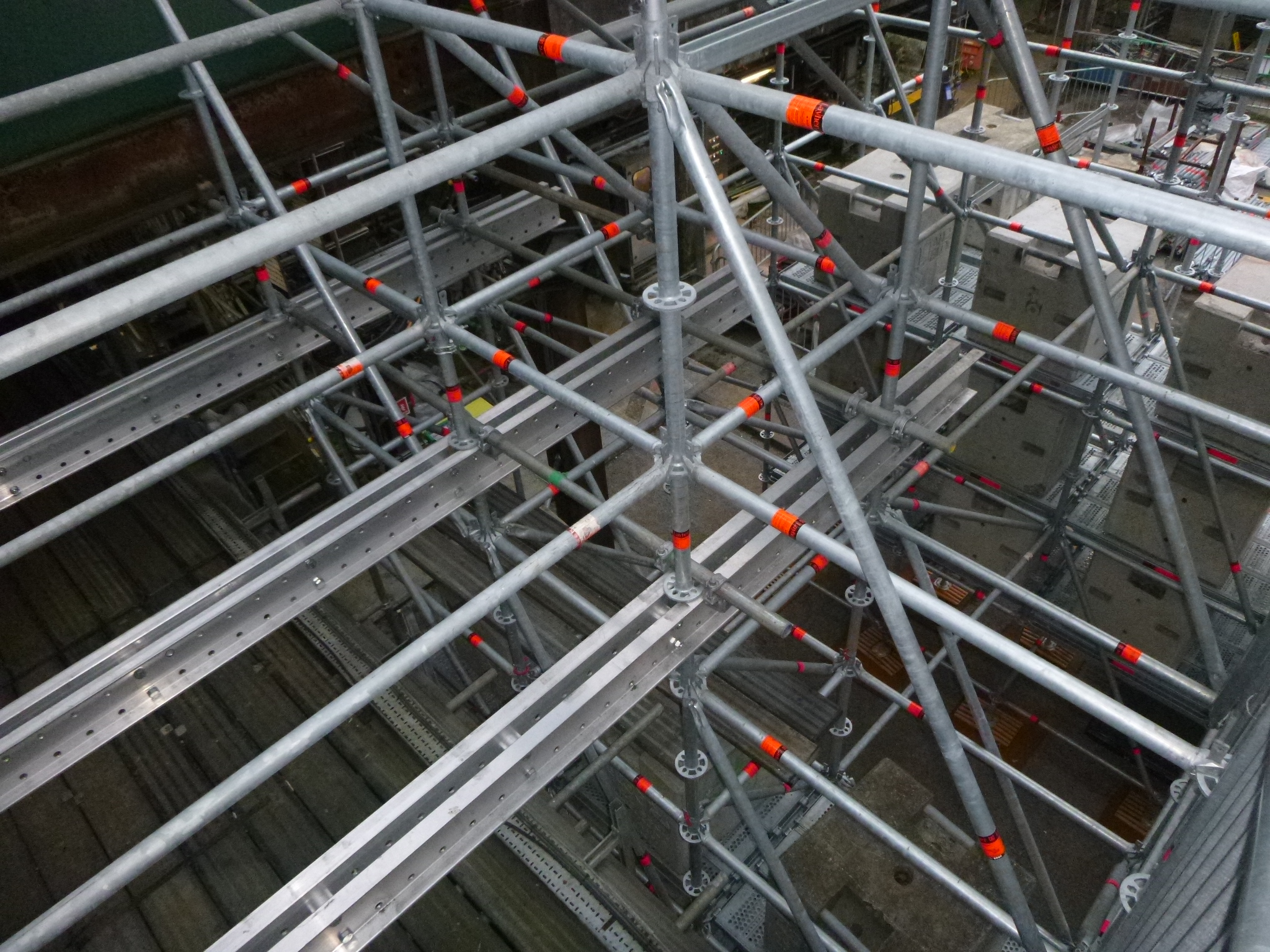

KAEFER UK utilised Layher’s award-winning TwixBeam on site at Sellafield, near Seascale.

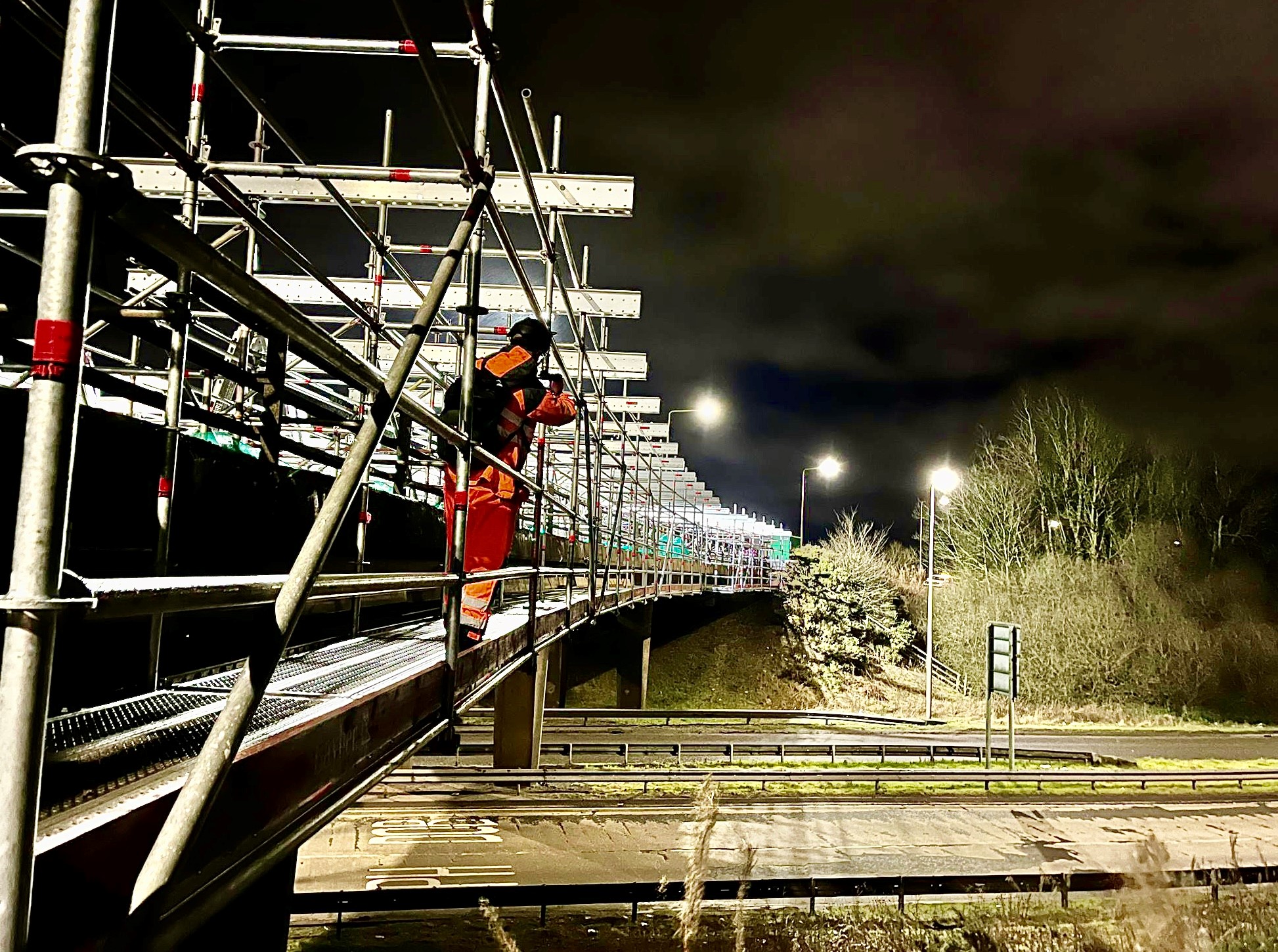

TwixBeam speeds ahead in Scotland.
