HD BEAM

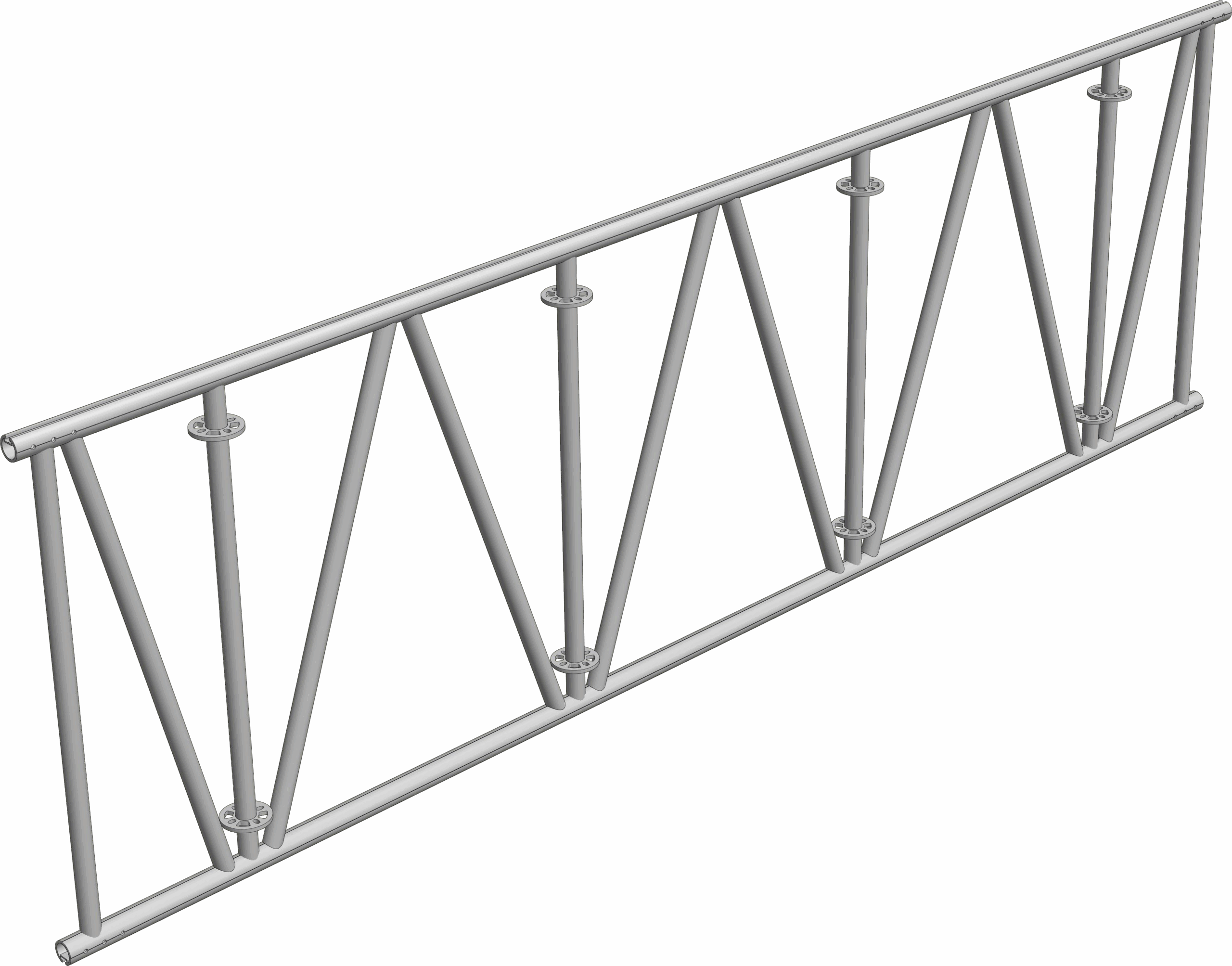

ALLROUND UNIVERSAL ALUMINIUM HD BEAM
HIGH STRENGTH, RELIABILITY & VERSATILITY
Designed to connect directly with both the Allround scaffolding system and tube/fitting scaffolds alike, enabling even more possibilities.
WHAT YOU NEED TO KNOW ABOUT
LAYHER ALUMINIUM HD BEAM
- Maximum moment 140kNm at 1.036 top chord restraint.
- Maximum Shear 53.8kN.

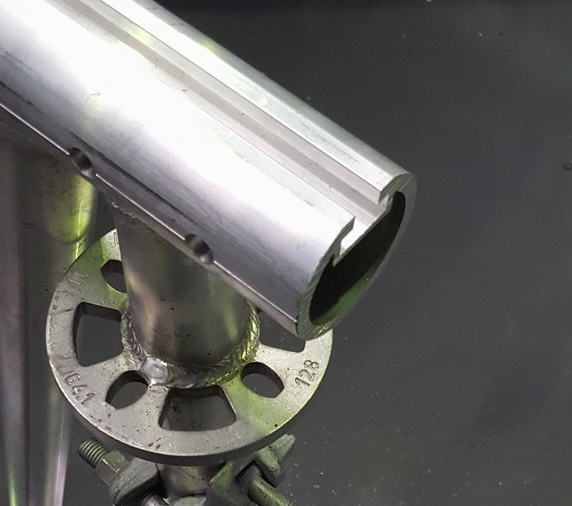

- Assured strength, from 60mm O/D top/bottom chord with 48.3 mm OD vertical posts and diagonals.
- 1.25 m centre-of-chord/centre-of-chord dimension
- Choice of lengths available incorporating rosettes and upright post spacings in Layher system sizes, enabling utilisation of current stocks for lacing and bracing.
- A range of accessories to further extend user possibilities.
WATCH HD BEAM IN ACTION
AT LAYHER

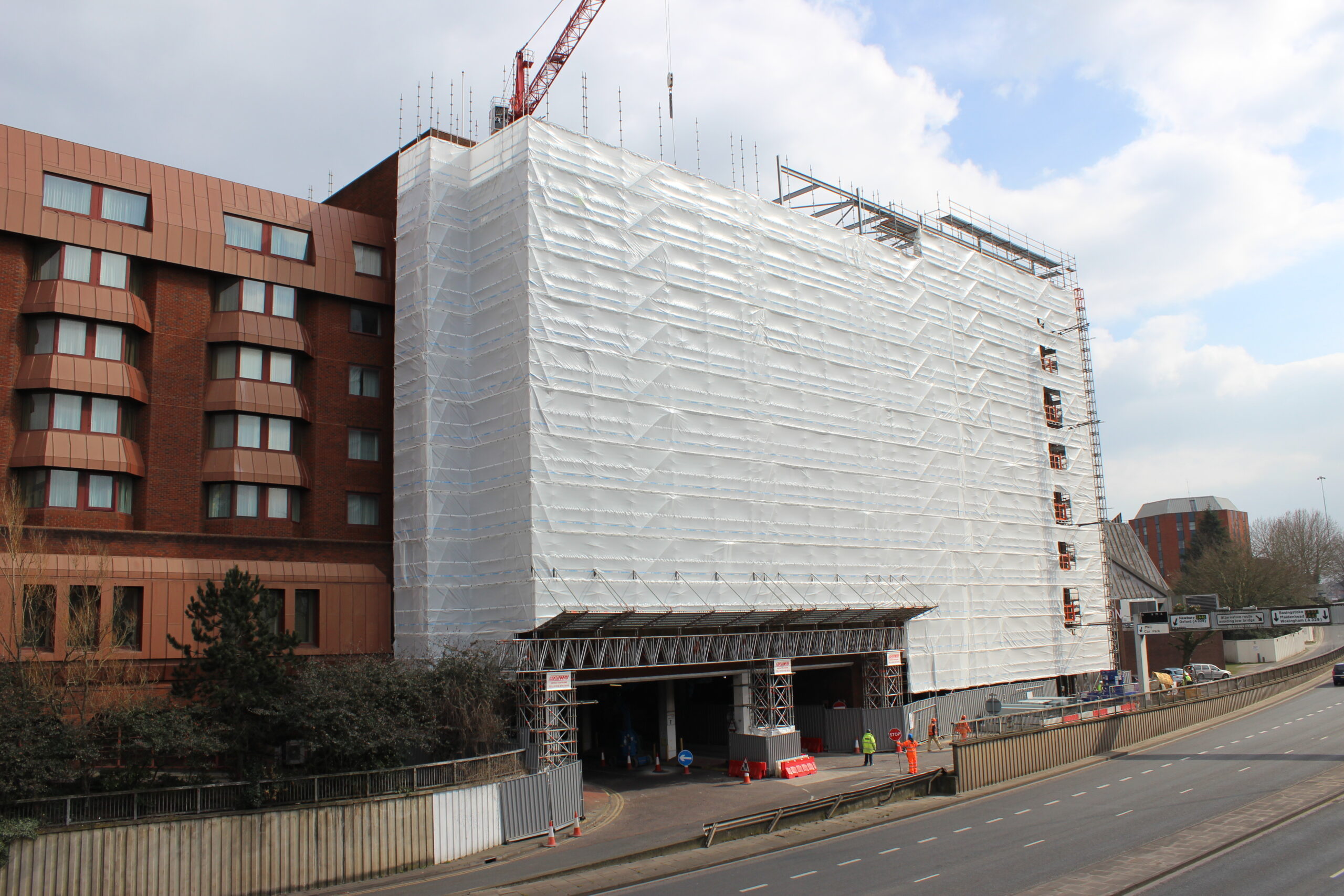

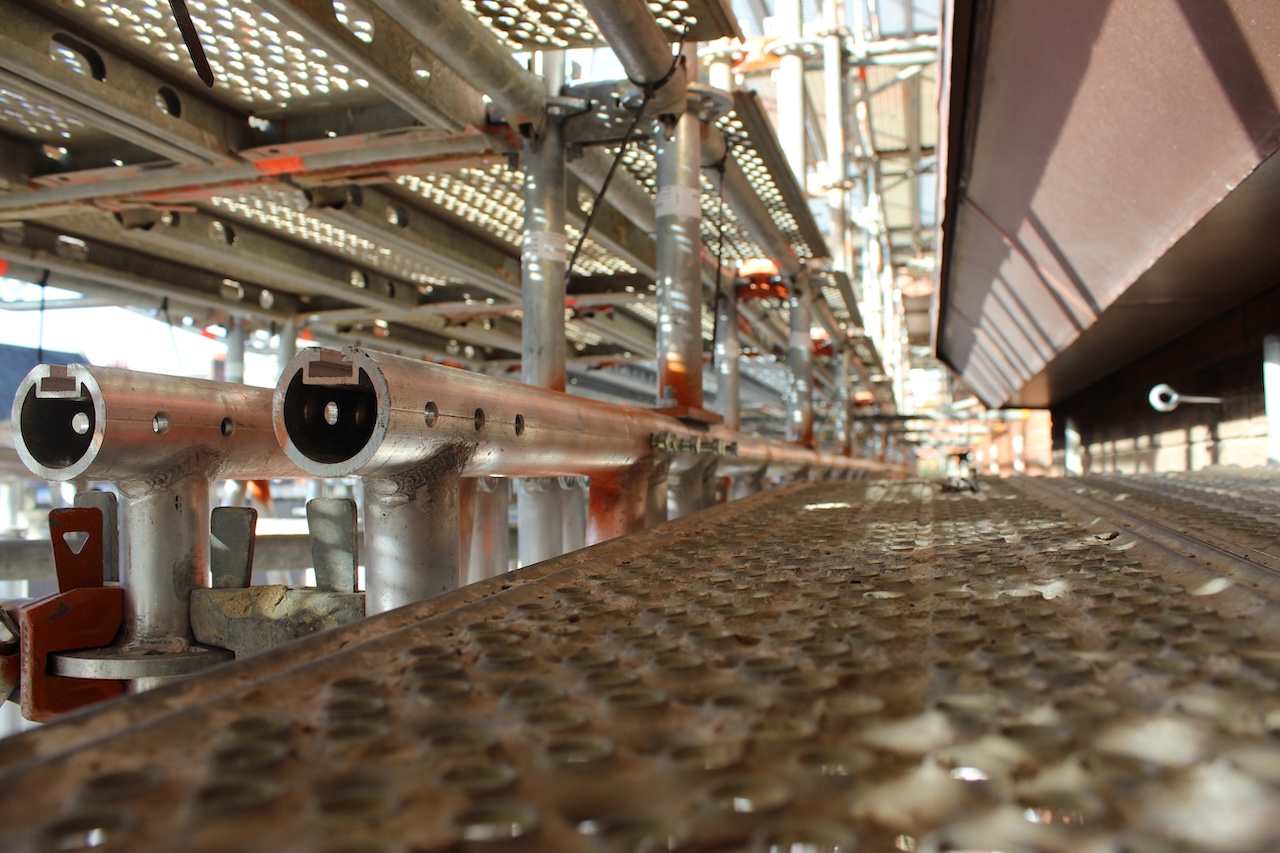

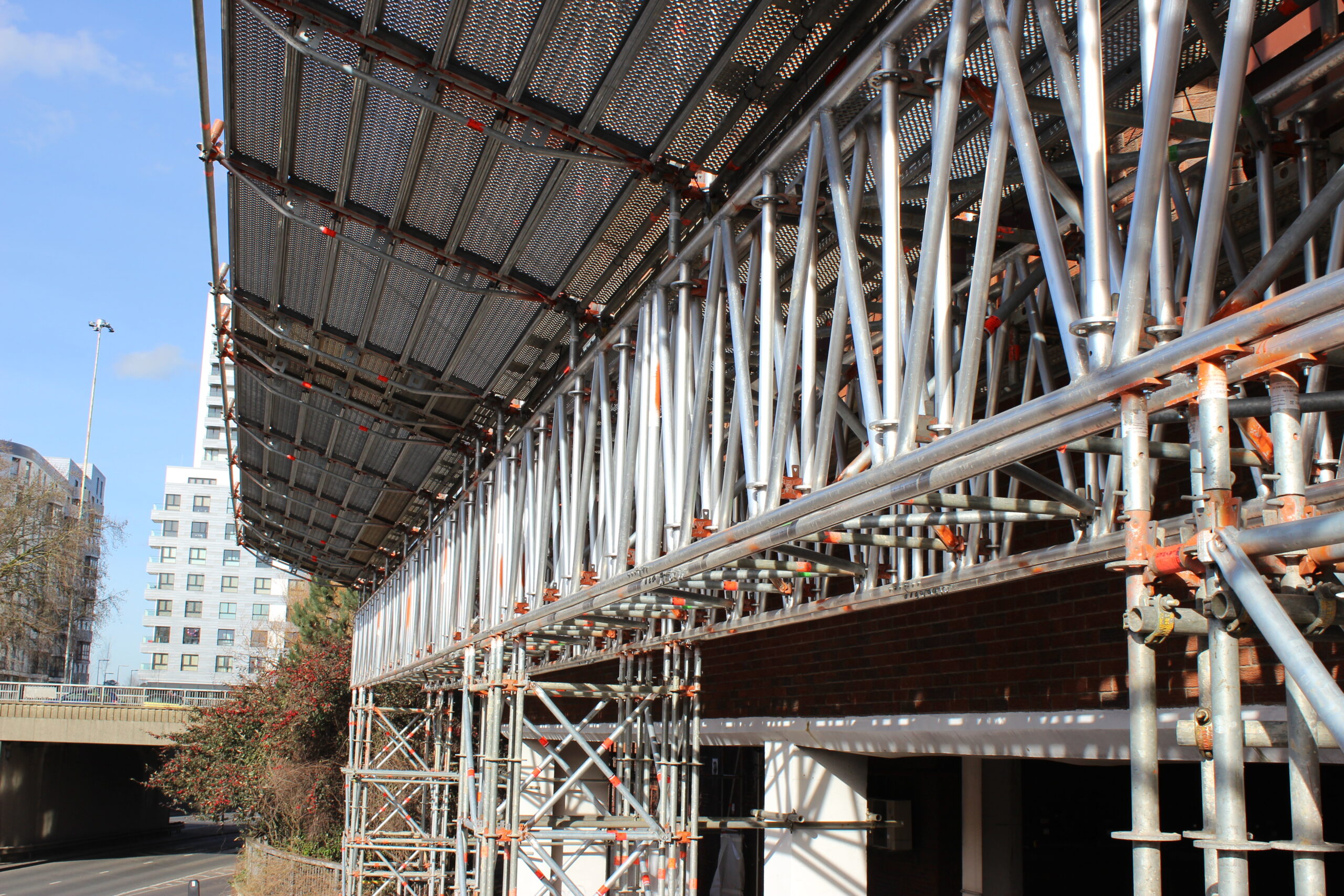

HD BEAM IN ACTION
IN THE FIELD
